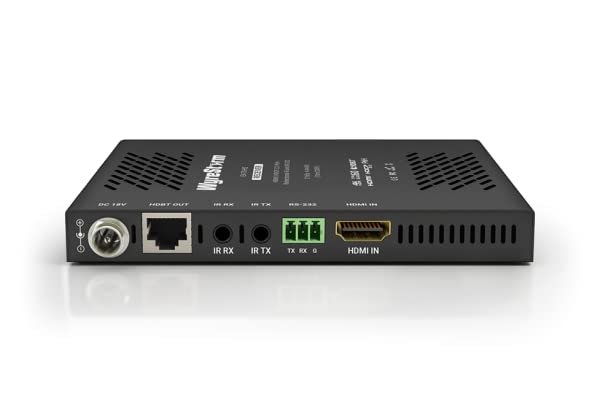

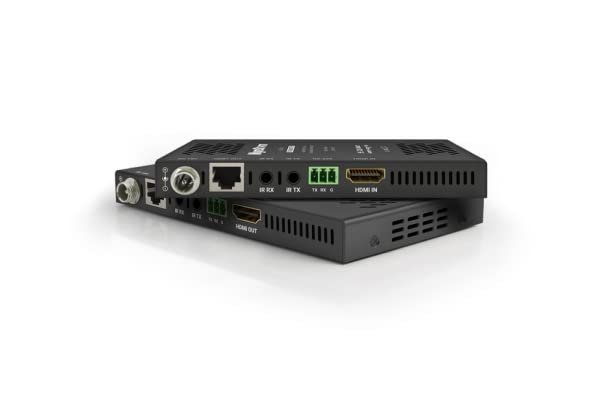

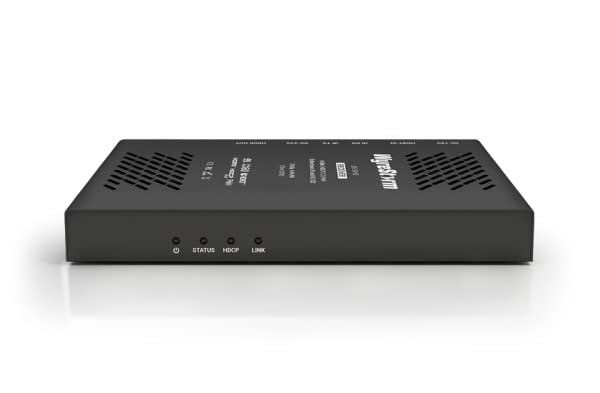

WYRESTORM 70m 4K60 HDBaseT Extender

Description

4K UltraHD extender set capable of transmitting AV content over medium distances using single cable Cat6 cable HDBaseT™ Class B transmission of 4K HDR up to 35m/115ft and 1080p @60Hz 36bit up to 70m/230ft Full UHD 4K transmission supporting HDMI 2.0 video standards Supports all high definition resolutions including 4K UHD @30hz 4:4:4 24bit | 4K HDR @24Hz 4:2:0 10bit (BT.2020) – see specifications for details Revised chipset increases compatibility with new 4K UHD source devices Transmits discreet wide-band bidirectional IR/RS-232 control signals together with HDMI over a single Cat5e/6 cable Low profile chassis of 15mm for easier, more convenient installations behind screens at display zones Supports 2ch PCM and 7.1 multichannel audio up to DTS-X and Dolby Atmos 2-way PoH (Power over HDBaseT™) enables either transmitter or receiver to be remotely powered by the other locally powered so mains power connectivity is not required at both source and display location HDCP 2.2 compliant 3D compatible Switchable RS-232 function mode on transmitter and receiver for firmware update Threaded bushings allow use of both standard and locking DC power plugs Visual LED indication for power, display connection signal status, HDBaseT™ link, and HDCP presence in signal Cable termination follows IEEE-568B standards Automatically adjusts feedback, equalization and amplification of signal for easy installation Energy efficient universal power supply included
