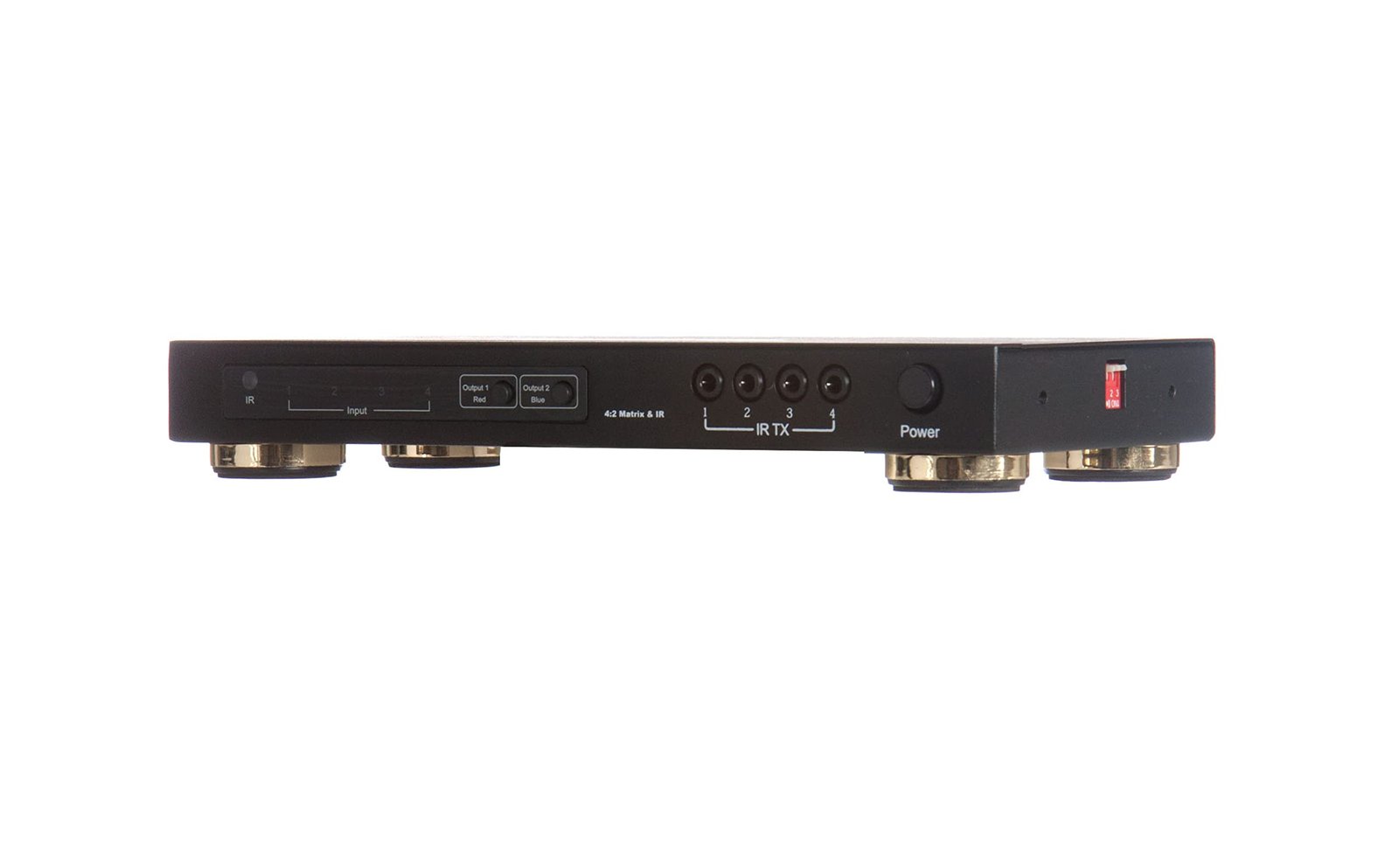

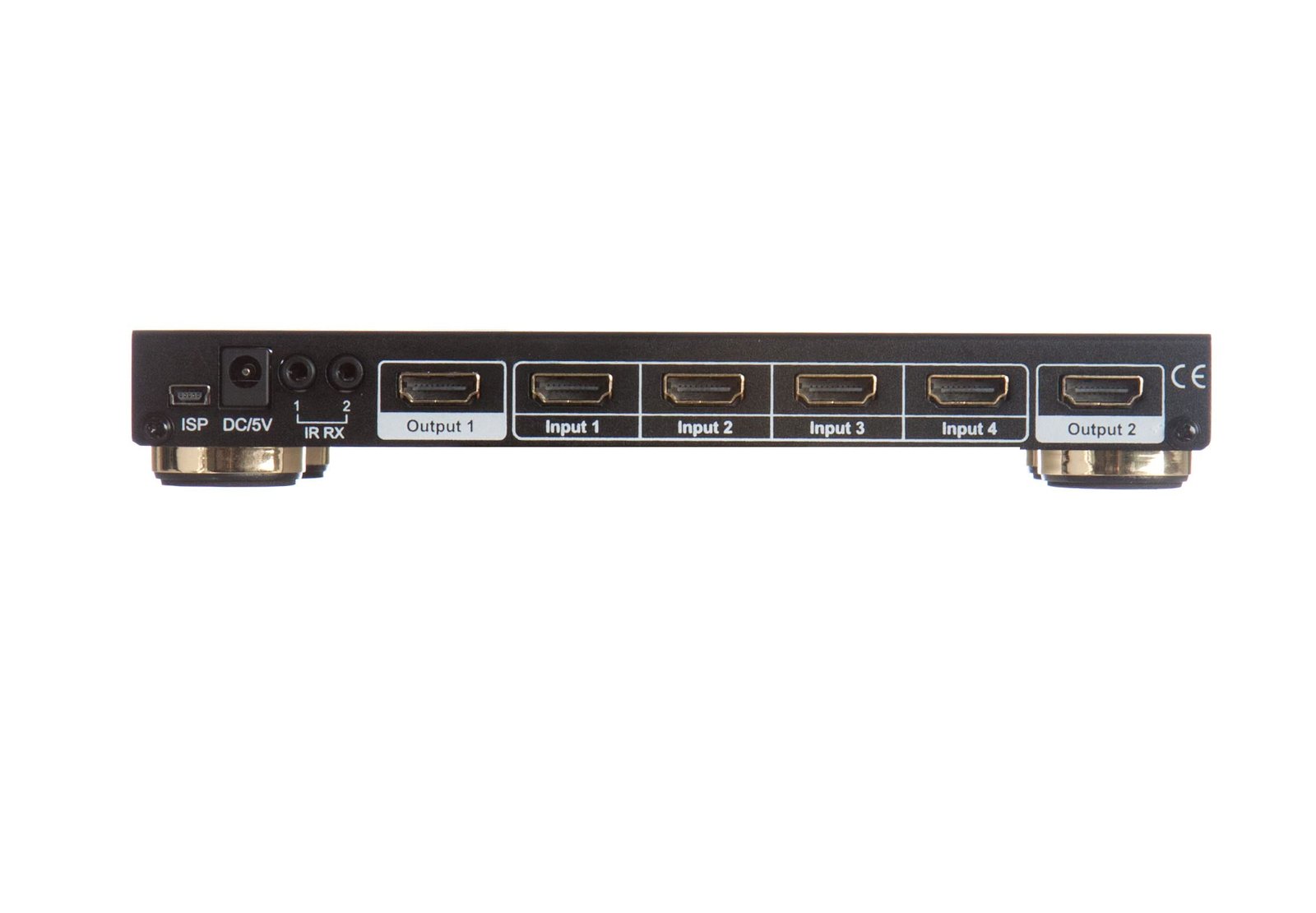

WYRESTORM MX0402-STD is a simple yet effective 4 input to 2 Output HD matrix switcher that allows up to 4 HDMI sources to be distributed simultaneously to up to 2 displays over standard HDMI cables

Description

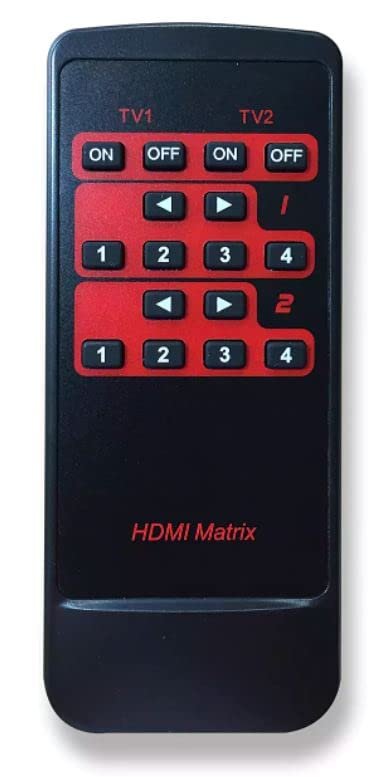

Low cost, stripped down full HD Matrix Switcher providing a perfect solution for Home or Retail AV as well as Commercial and Hospitality installations on a budget. 2 output models via standard HDMI outs 4 HDMI inputs with EDID management adjustment to further encourage device communication for fast, successful installations Automatically amplifies and equalises the HD signal for optimum performance with no loss of quality 6.75Gbps output bandwidth Fully compatible with 1080p HD video and HD multichannel Audio 3 methods of control – front panel manual switching, local IR with remote control or remote IR extension at display location (dedicated IR extention cable and IR emitters required With infrared extension and additional IR emitters at source locations, discreet IR call back to control HDMI source or HDMI MATRIX is possible from remote display locations. Remote control, IR accessories and mounting brackets included HDCP compliant HDMI 1.3V Connectivities 2 HDMI outputs 4 EDID-compatible HDMI inputs Downmix (5.1 > Stereo) on analog stereo audio output associated with the HDMI A output General IR remote control included Power supply: 5VDC Power consumption: 10 W max Dimensions (WxHxD): 197mm x 24mm x 108mm Weight: 1.25kg
